Differences:

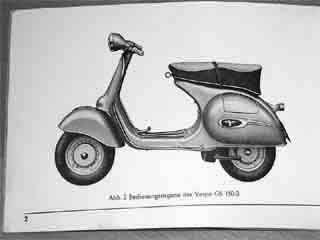

Picture 1: GS 3 - Type 162, with rims "Star" design and 31°IP

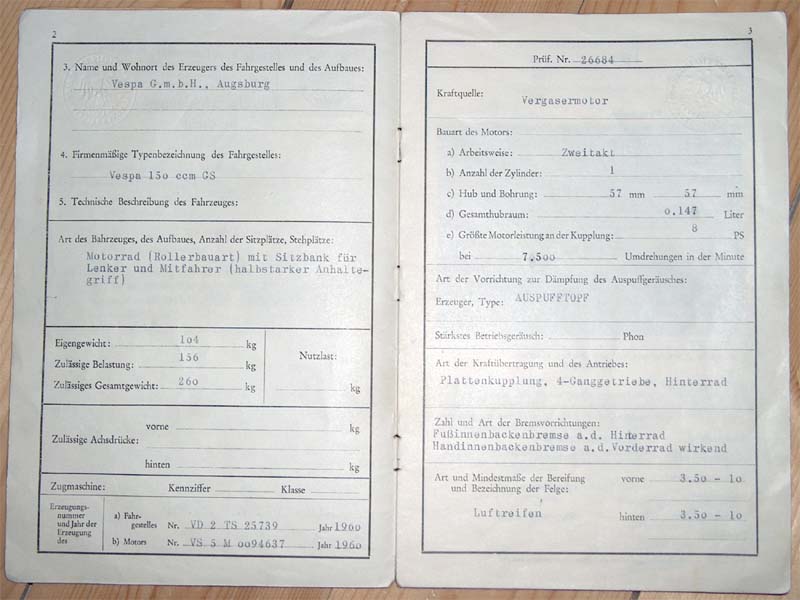

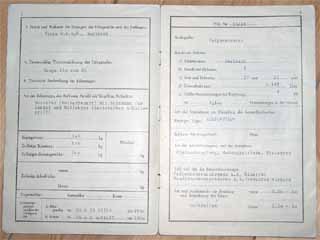

Picture 2: GS 3 - Vehiclelicense

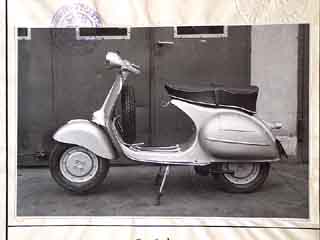

Picture 3: GS 3 - Type 212, with "Rally" rims, turnsignals and 27°IP
|
|
|
|
At no other GS 150 modell the differences are bigger to the italian make, than at the GS 3. Most of them can be seen from outside and make this scooter a unique one, wich is especially searched by collectors and drivers who want to own a german-built Vespa. Fact is, that the qualitystandard in Augsburg was higher then in Italy. The parts are more precise, the comfort and quality of the seat made by Denfeld is unbeatable. Because there were less scooters built in Germany, the price of them today is much higher. If you plan to get a german GS 3 think about that: Also the spareparts are harder to find and more expensive. Many parts fit from the italian modell, but those parts wich are different can cause big troubles, even when you want to restore your GS 150 most original. Donīt buy a GS 3 without the right saddle, horn and speedometer.

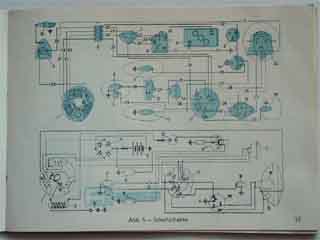

Vespa GS 3, Typ 212(1961), electrical diagram with turnsignals:
 |
 |

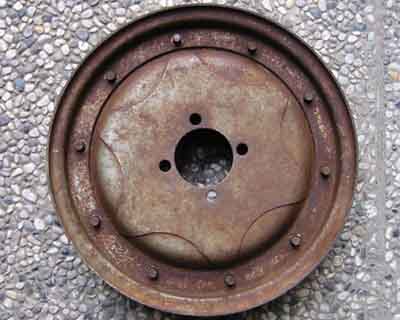

1958 : Messerschmitt GS3, VS3T/VS3M, with "Star" rims, 31° ingnitionpoint
1958 : VD2TS 7001 to 10480 (Type 112), with "Star" rims, 31° ingnitionpoint
1959 : VD2TS 10481 to 13300 (Type 162), with "Star" rims, 31° ingnitionpoint
1960-61 : VD2TS 13301 to 35177 (Type 212) Rallyrims, 31°IP (1960) - turnsignals and 27°IP, Compression 7,2 (from 1961).
Differences of the GS 3 from italian-built:
1) Vespa G.S. Script, 3mm aluminium, glued to shield - not(!) screwed

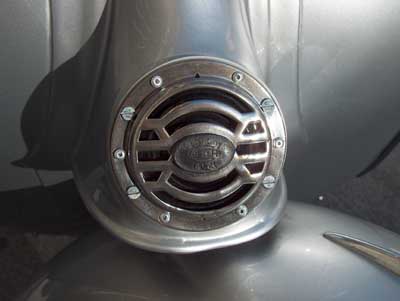

2) Horn, Brand HELLA, 6V

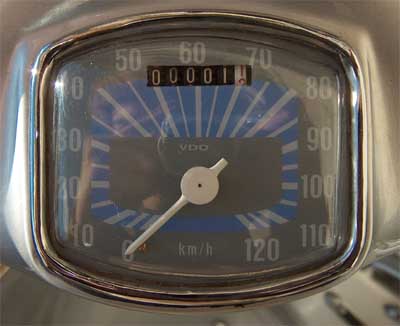

3) Speedometer, Brand VDO, 120km/h, lightblue
4) Headlamp, SCHARLACH

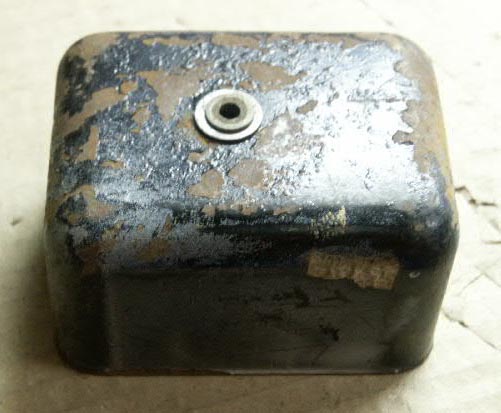

5) Electric, ~/+- Converter 6V with cover
6) Lightswitch, ivorywhite switch

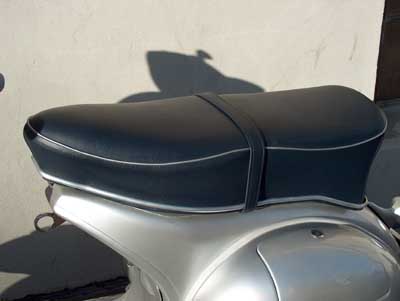

7) Saddle, Brand DENFELD, with chromtrimm, saddlerest
8) Chrometrim at the rear, left and right, aluminium polished
9) Frontfender Chrometrim, aluminium polished
10) Taillight "Schwanenhals", Brand HELLA
11) Stickers in german
12) Wiring, electric parts and battery
13) Handlebargrips with "Vespa" Script (it. "P")

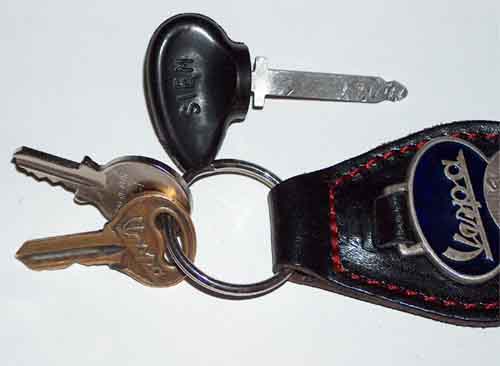

14) Steeringlock Brand HUF
15) Frontspring chromed, (it. zink plated)
16) Batteriehousing has a lock
17) Shockabsorber and rear Springholder Brand BOGE, painted silver
18) Type 212 (1961) turnsignals and relais both Brand HELLA
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
||
Hella Converter was also produced by AEG - AEG B 25/20-2 rs, 534.02m/4/7240.054-11x
