Technical Details:

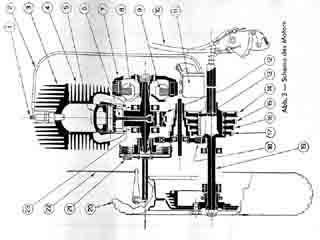

Engine, Vespa GS 3, Type 212, round Pistonhead, 27° ignitionpoint:
Specification:
Consumtion: 3 liters
Climbability: 30%
Fueltank: 9,5 liters
Mix: 1:15
Speed: 100km/h, 63mph
Range: 310km / 190 miles
Wheelbase: 1180mm
Width at handelbar: 730mm
Lenght: 1700mm
Saddlehight: 825mm
Hight: 1050mm
Turncycle: 1400mm
Weight: 111kg
Bore: 57mm
Stroke: 57mm
Volume: 145,6 ccm
Compression: 1 : 6,7
Horsepower: 8 HP
1958 : Messerschmitt GS3, VS3T/VS3M, with "Star" rims, 31° ingnitionpoint
1958 : VD2TS 7001 to 10480 (Type 112), with "Star" rims, 31° ingnitionpoint
1959 : VD2TS 10481 to 13300 (Type 162), with "Star" rims, 31° ingnitionpoint
1960-61 : VD2TS 13301 to 35177 (Type 212) partial with "Star" rims, partial with "Rally" rims and 27° ignitionpoint(Compression 7,2):
Workshopmanual GS 3(all types):

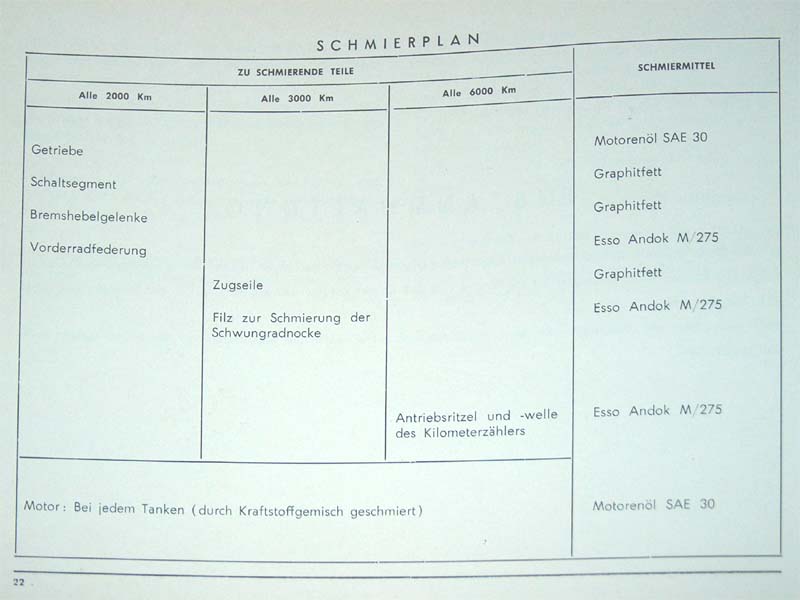

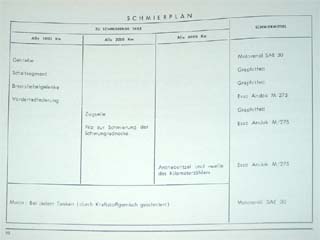

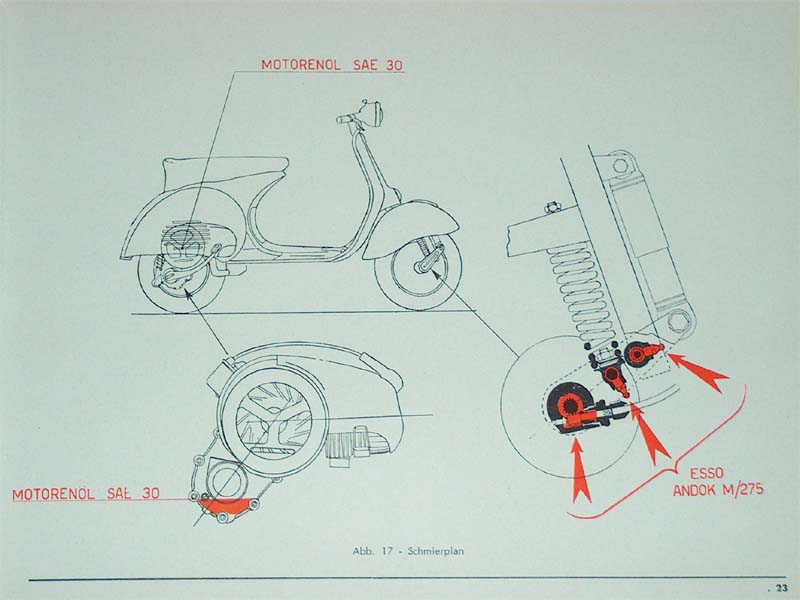

Lubricationplan GS 3:
Instructionmanual german GS 150 / 3, last series (27°):
Instructionmanual german GS 150 / 3, Messerschmitt:
Instructionmanual of an italian GS 150, VS1 and VS2:
